AI Prime 16HD Reef White 59W — HyperDrive Nano Reef LED - AquaIllumination

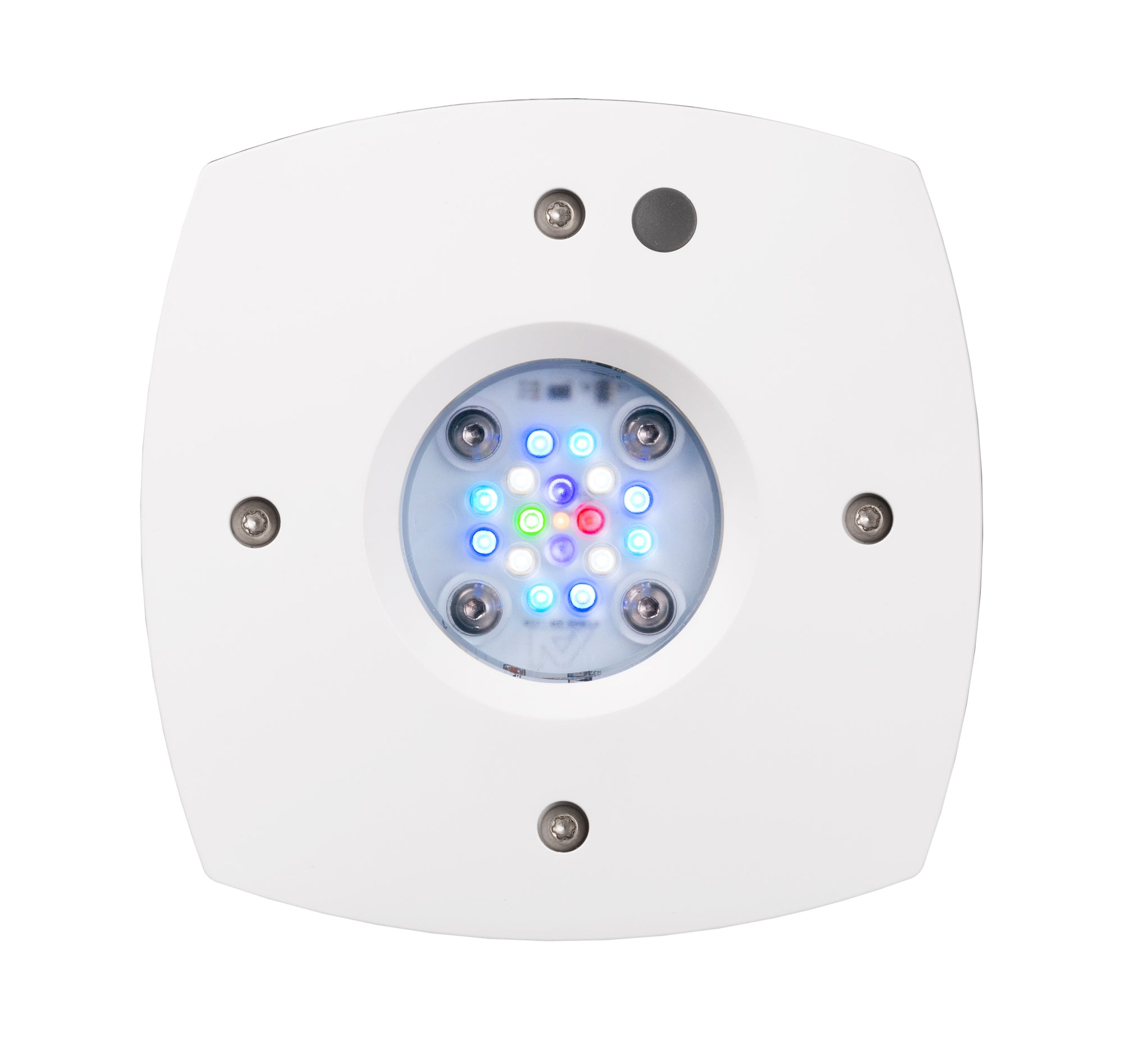

The white-cased AI Prime 16HD Reef is the world's most popular compact LED lighting for nano and medium-sized reef aquariums. With 59 watts, 16 LEDs (+1 moonlight) spread across 7 color channels, and 80° TIR lenses with superior optical efficiency of over 90%, the Prime 16HD provides 100 µmol PAR coverage over a 24 x 24 inch (61 x 61 cm) area at 24 inches deep. The white casing perfectly matches white aquariums, light furniture, and silver Prime mounts.

Key Technologies

• HyperDrive: Dynamically adjusts power between LED channels — borrows power from unused colors to intensify those you want, providing the most vivid spectrum possible
• 80° TIR Lenses: Custom optics with over 90% efficiency and a diffuse output surface for optimal color blending
• Dedicated Moonlight Channel: Independent LED simulating natural lunar color and intensity
• 7 Color Channels: 4 Cool White, 4 Blue, 4 Royal Blue, 1 Photo Red, 1 Green, 1 Violet, 1 UV + 1 Moonlight
• Improved Moisture Resistance: Optimized design for the humid environment of reef aquariums

Technical Specifications

• Power: 59 watts (55W at the wall)
• Number of LEDs: 16 + 1 moonlight
• Color Channels: 7 (+1 moonlight)
• Beam Angle: 80° (TIR lenses)
• Dimensions: 12.4 x 12.4 x 3.4 cm (4.88 x 4.88 x 1.34 in)
• Weight: 0.43 kg (0.95 lb)
• Input Voltage: 100 to 240 VAC, 50-60 Hz
• Cable Length: 6.1 m (20 ft)
• Coverage: 24 x 24 in (61 x 61 cm)
• Peak PAR: 100 µmol at 24 in deep
• Control: Mobius App (iOS/Android), myAI, Neptune Apex via Fusion with MXM module
• Connection: Direct Bluetooth BLE — no additional hardware required
• Casing Color: White
• Certifications: UL, CE, RoHS

Box Contents

• 1 x AI Prime 16HD Reef (white)
• 1 x Power Adapter
• 1 x Quick Start Guide

Note: Mounting hardware sold separately.

Mounting Options — Sold Separately

• Prime Tank Mount: Brushed aluminum mount for rimless and rimmed aquariums — available in black or silver
• Prime Flex Arm 12 in: Silicone flex arm for nano and medium-sized aquariums
• Prime Flex Arm 18 in: Silicone flex arm for deeper aquariums
• Prime Hanging Kit: Ceiling suspension kit for a minimalist look

Ideal for which aquariums?

The Prime 16HD is perfect as primary lighting for nano reefs and frag tanks up to 24 inches on a side. The white casing ideally matches Waterbox aquariums, white Red Sea Reefers, and other light-finished systems. For larger or deeper aquariums, use several Prime 16HDs in a group or consider the Hydra Edge 44HD (95W) or 68HD (135W) for superior coverage and PAR.

Why choose ReefSolution

All AI Prime mounting accessories are available at ReefSolution. Complete your setup with the silver Prime Tank Mount for a perfect match with the white casing, or the Prime Flex Arm 12 in or 18 in. For more powerful lighting, consider the Hydra Edge 44HD or 68HD. Shipping throughout Canada.

Frequently Asked Questions

Is the AI Prime 16HD sufficient for a reef aquarium with SPS corals?

Yes, for a nano reef up to 24 x 24 inches and 24 inches deep. The Prime 16HD delivers a peak PAR of 100 µmol, sufficient for SPS in small volumes. For larger or deeper aquariums, use multiple units or upgrade to the Hydra Edge.

Which mounting bracket should I choose for the white Prime 16HD?

The brushed silver Prime Tank Mount perfectly matches the white casing. The Flex Arm 12 in or 18 in offers more positioning flexibility. The Hanging Kit is suitable for ceiling suspension. All are sold separately at ReefSolution.

Is the Prime 16HD compatible with Mobius and Neptune Apex?

Yes. The Prime 16HD connects via Bluetooth BLE directly to the free Mobius or myAI app (iOS/Android). It is also compatible with Neptune Apex via Fusion with the MXM module for centralized control of all your equipment.
