The ReefATO+ 3 in 1

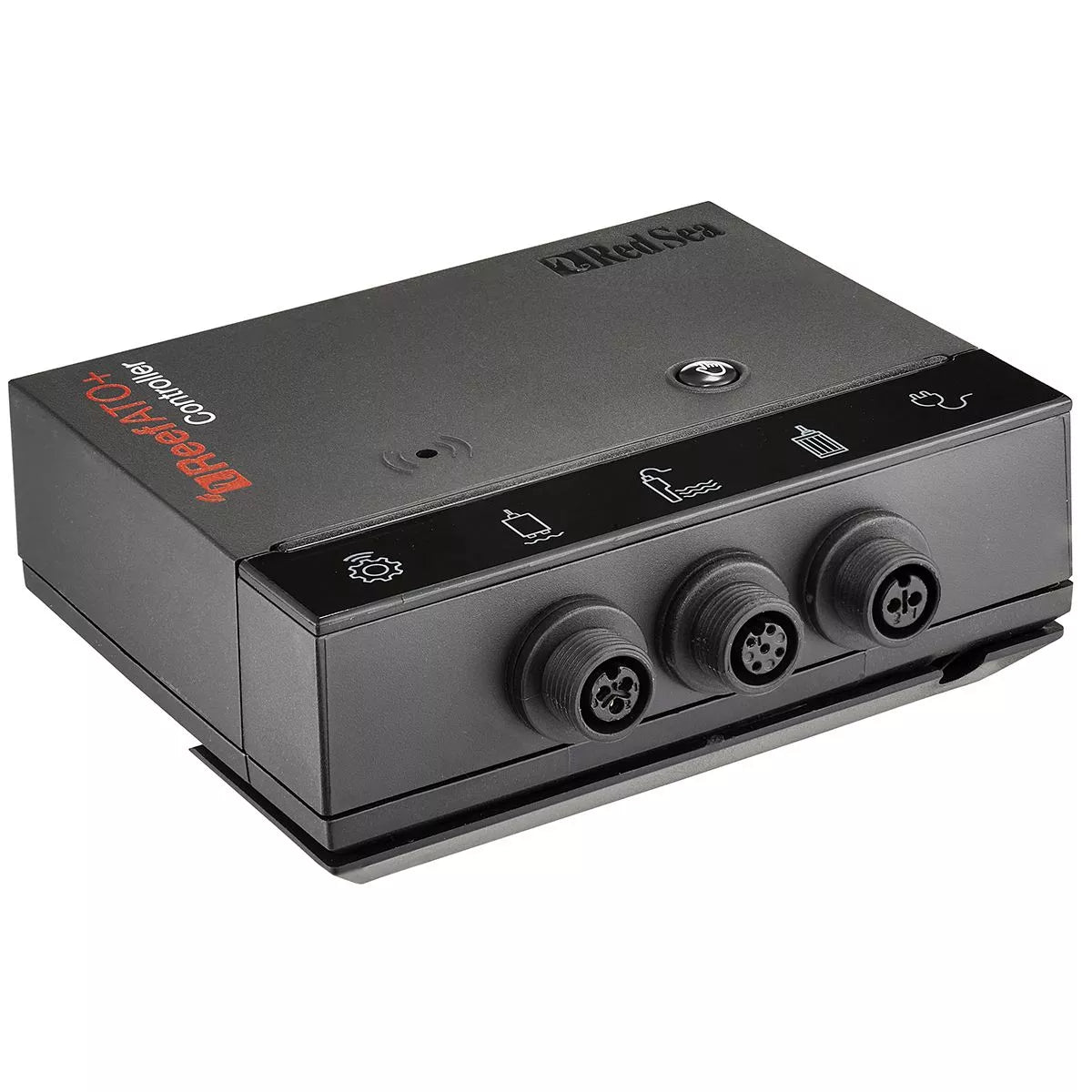

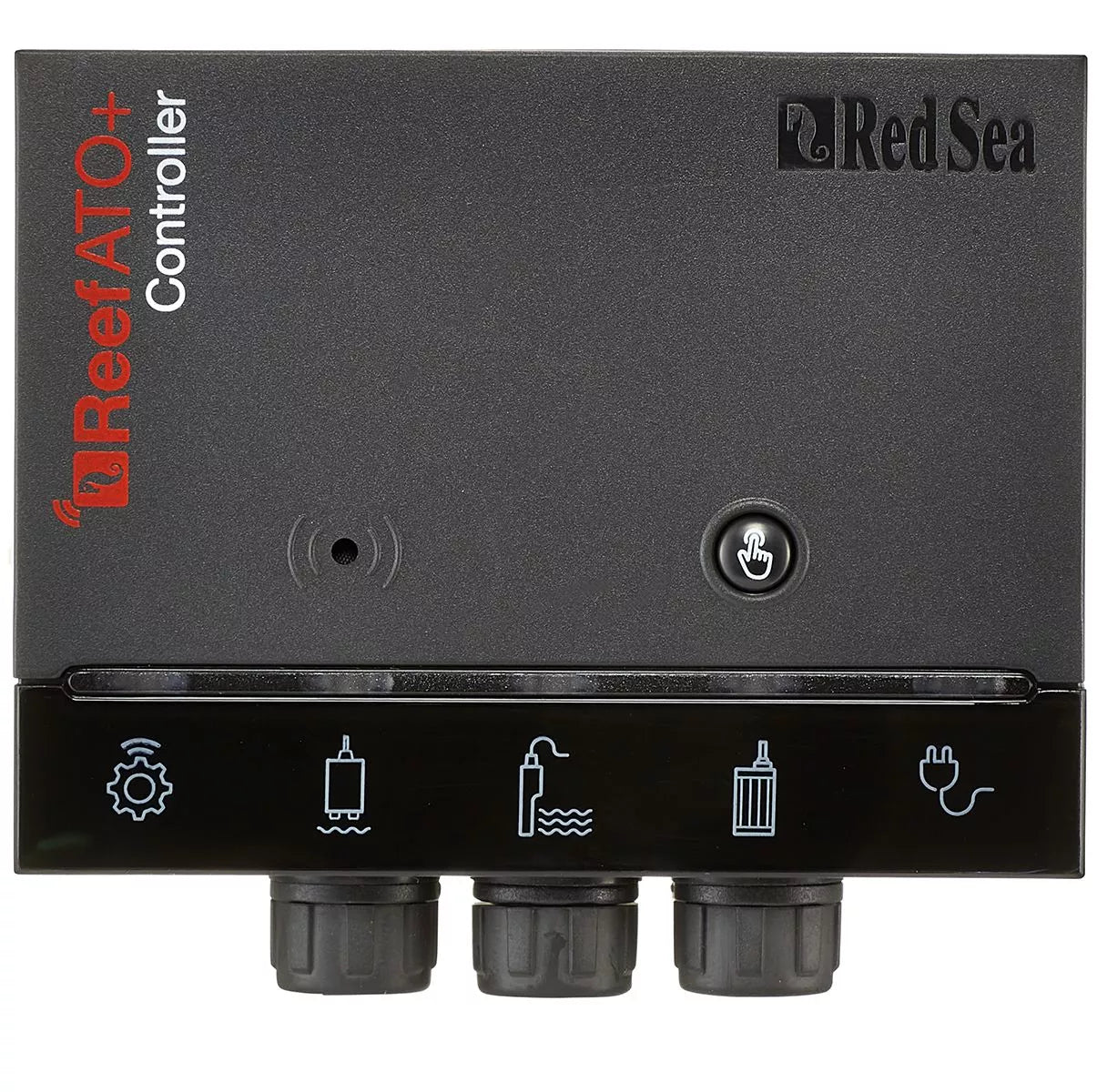

This exceptionally reliable autofill system features a highly accurate temperature monitor as well as an external leak detector and comes with a smart controller that connects it to the ReefBeat ecosystem.

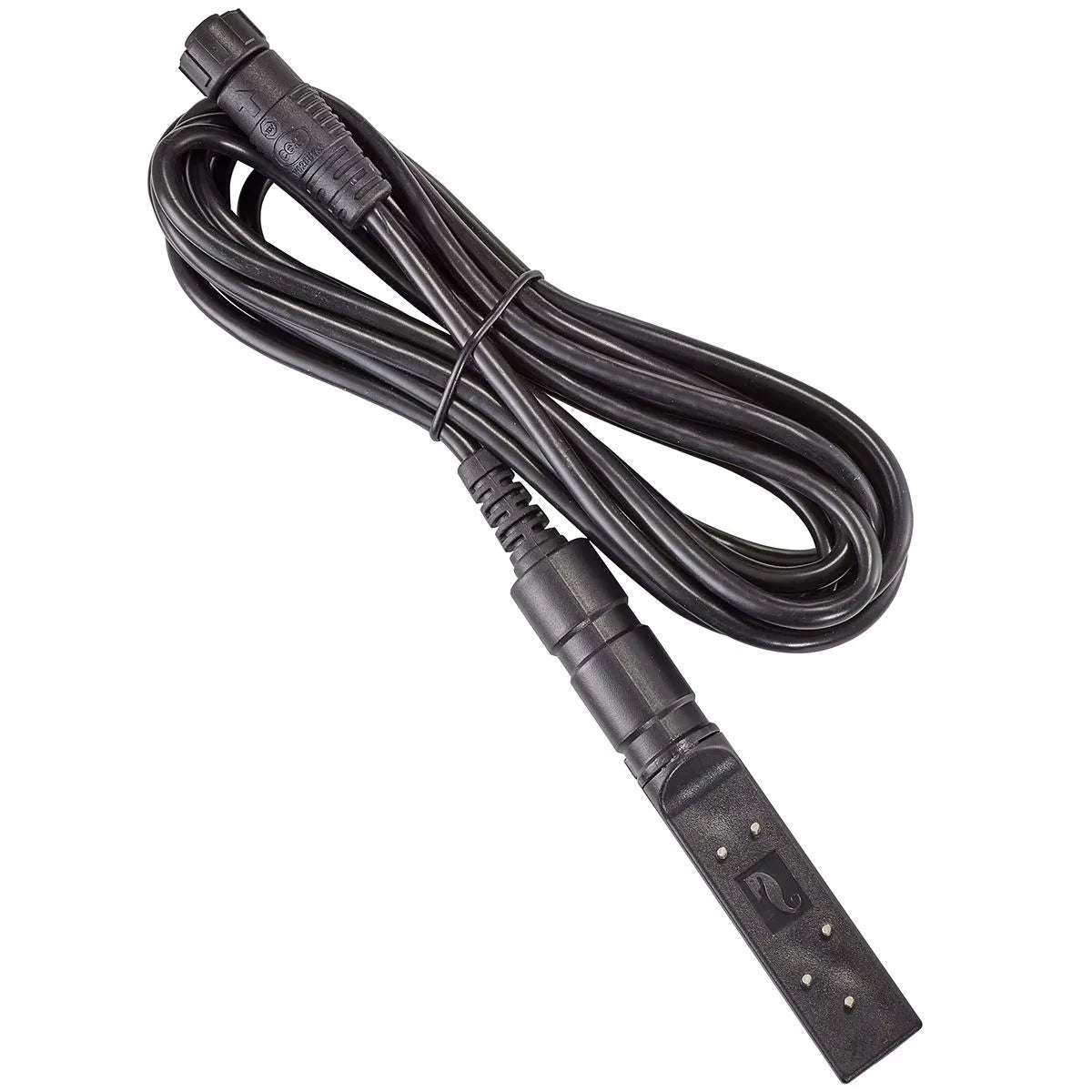

The ReefATO+ features a solid state water level sensor with a set of titanium probes that indicate whether the water is above, below, or at the desired level. This comes with an extra-quiet microprocessor-controlled pump and multiple safety features, including an automatic shut-off mechanism if the pump runs too long or runs dry.
Each filling is done in a precise 3mm band, keeping the water volume and salinity nice and stable. Additionally, higher level backup probes only respond when the ATO pump is on, so routine water fluctuations, such as when using roller filters or stopping the ATO pump from return, will not trigger any false alarms. The water level sensor also includes an accurate digital thermometer that has been pre-calibrated to 0.1 degrees, which provides full log and high/low temperature notifications.

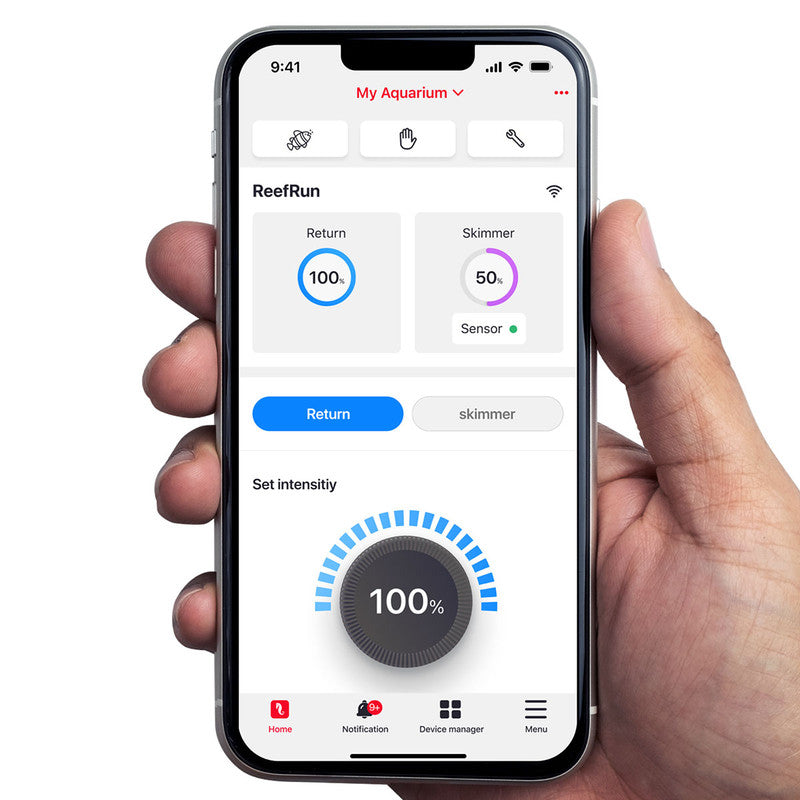

The ReefATO+ is part of the ReefBeat ecosystem, so it has many smart features such as disabling auto-fill during maintenance work and water changes or stopping ReefRun pumps if a leak is detected.
Owners of existing Red Sea REEFER systems can purchase a dedicated ReefATO+ upgrade kit (at a discounted price), which immediately replaces the standard gravity-fed float valve system.
Clever. On. Calme.
The ReefATO+ is designed to maintain stable salinity and water volume in a reef aquarium by automatically replenishing water lost due to evaporation. Additionally, the ReefATO+ provides two other critical aquarium health indicators: a full-featured online digital temperature monitor and a leak detector.
On.
L-proof water level sensor (solid-state EC technology) with built-in safety shut-off. Automatic shutdown if sensor is not connected, pump runs much longer than normal, RO tank runs out of water, or leak detected.
ReefATO+ Features:
• Fail-proof (solid state) water level sensor with built-in safety shut-off.

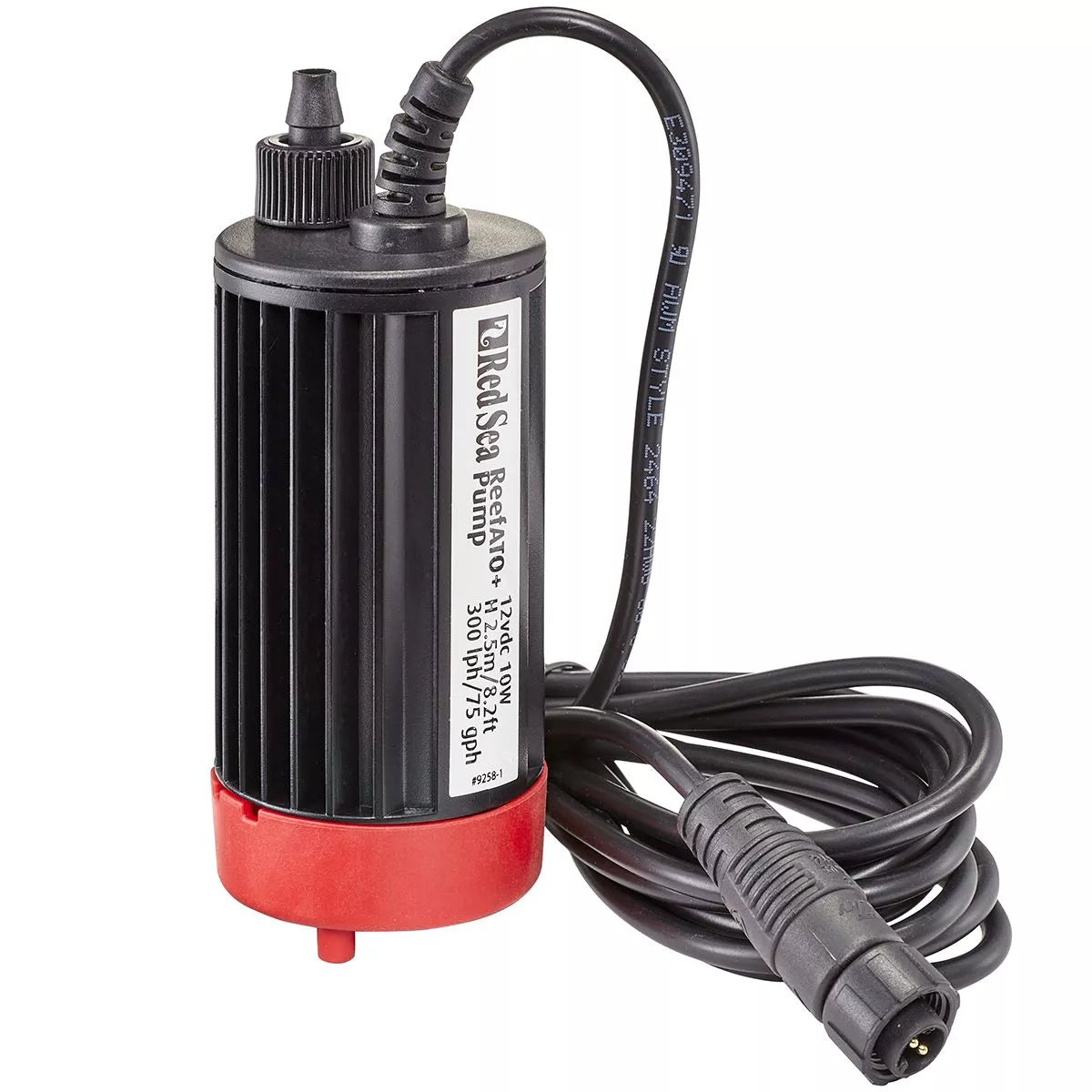

• 12 VDC (6 - 10 w) variable flow silent ATO pump - 1.8 in diameter opening, max. 75 gph, head max. 8 ft.
• Magnetic sensor mounting bracket for glass up to ½”. (not included with refrigeration upgrade kit)
• 10 foot silicone tube with siphon breaker and anti-splash tube holder with securing locknuts.

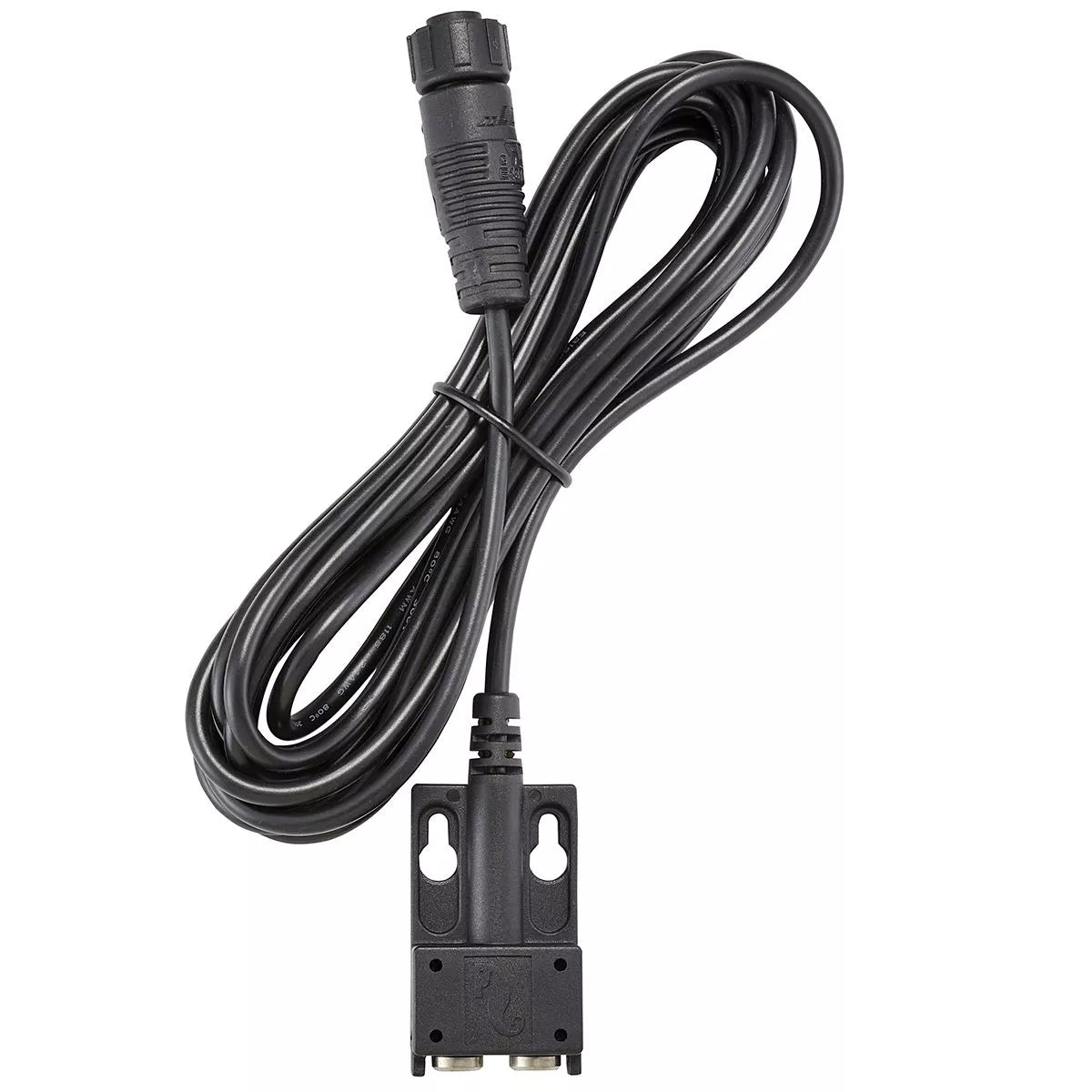

• REEF-SPEC titanium RO/seawater leak detector with audible alarm.
• Accurate ±0.1° in-line temperature sensor.
• Detailed fill and temperature logs.
• Reverse osmosis tank volume monitor.
• Integration with ReefBeat Power/Maintenance/Emergency Quick Actions.

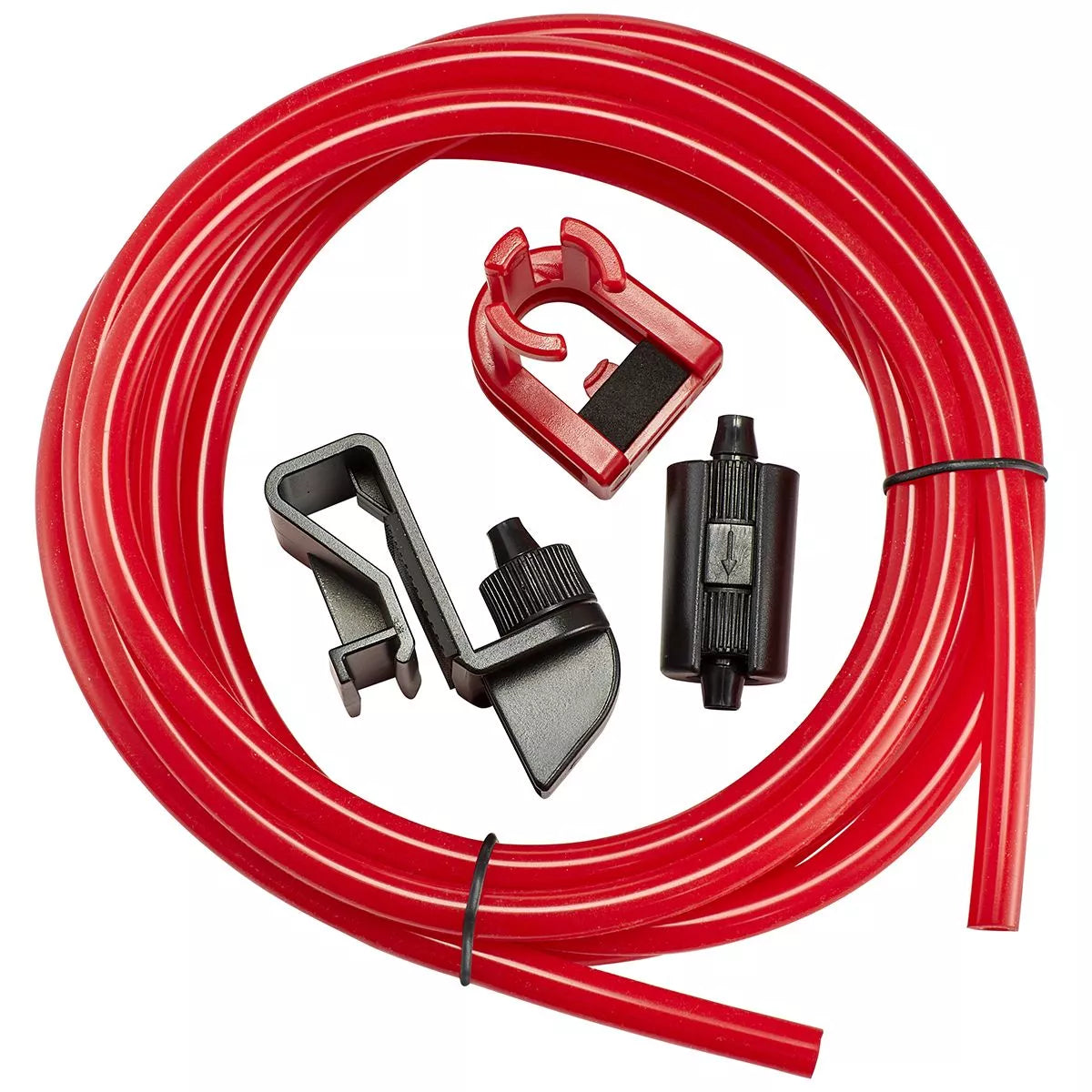

Complete Installation Kit
• Sensor holder and magnetic corner mounting bracket for 12 mm ½” glass. (not included with refrigeration upgrade kit)
• 3M /10′ – 1.5mm / 1/16″ silicone tubing ID 5mm / 0.2″ thick.
• Quiet flow – Tube holder, clips on glass 4 – 12 mm / ½”.
• Siphon breaker.
