Radion XR30 PRO G6 — 215W Reef LED Full Spectrum 101 HEI2 126° LEDs - EcoTech Marine

The EcoTech Radion XR30 PRO G6 is the full-size, full-spectrum reef LED light designed for reefers who want a perfect balance of coral growth, color rendition, and performance. Used in public aquariums, aquaculture facilities, and coral breeding labs worldwide, the Radion Pro is the industry standard. With 215 watts, 101 diodes, and the 126.3° HEI2 optical system, the XR30 PRO G6 covers up to a 4-foot aquarium with uniform PAR.

G6 Pro Spectrum — Full Balance and Fluorescence

The Pro G6 model offers the most complete and balanced spectrum in the Radion range, with a rendition similar to Metal Halide lamps that have proven themselves in reef aquariums for decades. The Pro cluster incorporates green LEDs absent from the Blue model, more warm white and cool white for natural rendition and accurate photography:

• 395 nm (UV): New diodes unlocking additional fluorescence in corals and fish — pigments invisible under previous generations
• 400-450 nm: Rebalanced blue and violet channels for optimal fluorescence and photosynthesis
• 460-580 nm: Green LEDs and mid-range spectrum for natural color rendition and complementary photosynthesis
• 665 nm: Far red diodes for coral photosynthesis and visual balancing — the Pro integrates 4 red LEDs versus 2 for the Blue

HEI2 Optics — 126.3° Spread

The Hybrid Hemispherically Edge Illuminating (HEI2) optical system of the G6 increases the output angle from 110.5° (G5) to 126.3°. The result is remarkably uniform PAR across the entire aquarium surface, without hot spots or dead zones. Light reflects off the glass walls, reducing shadows and illuminating the undersides of coral branches. A single XR30 PRO G6 covers a 48-inch aquarium for a mixed reef. For the most demanding SPS in PAR, two units are recommended.

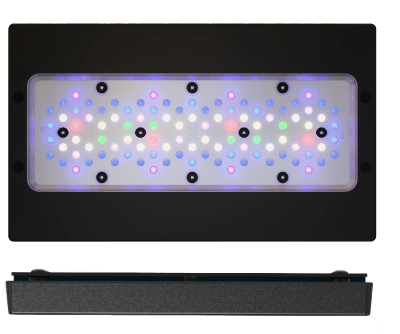

Technical Specifications — XR30 PRO G6

• Power: 215W
• Number of LEDs: 101 (16 Cool White, 32 Royal Blue, 16 Blue, 4 Red, 6 Green, 4x 395 nm, 2x 405 nm, 4x 415 nm, 8x 430 nm, 8 Warm White, 1 Moonlight)
• Optics: HEI2 — 126.3° spread
• Dimensions: 30 x 18 x 3.9 cm (11.8 x 7 x 1.5 in)
• Weight: 2,041 g (4.5 lb)
• Input Voltage: 100-240 VAC, 50/60 Hz
• Peak Inrush Current: 4.0 A
• Control: Mobius App (iOS/Android) included — no separate controller required. Compatible with Neptune Apex via MXM
• Coverage: Up to 4 feet (120 cm) of uniform PAR
• Preconfigured Profiles: SPS AB+, LPS, and others downloadable via the Mobius community

Pro vs Blue — What's the Difference?

The XR30 PRO G6 offers a balanced full spectrum with 16 Cool White, 32 Royal Blue, 16 Blue, 6 Green, 4 Red, and 8 Warm White — ideal for natural rendition, growth of all coral types, and accurate photography. The XR30 Blue G6 concentrates its power in the blue channels with 32 Royal Blue + 32 Blue without green LEDs — for maximum fluorescence and intense actinic rendition. Both models share the same housing, power (215W), and 126.3° HEI2 optical system.

Exploded View — Radion G6 Construction

The finned heatsink and silent fan keep the LEDs at optimal temperature for maximum lifespan. The compact profile (1.5 inches high) and anodized aluminum construction make the Radion G6 one of the most discreet LED lights on the market.

Mobius Control — Smart Programming

The free Mobius app (iOS/Android) offers full control of each LED channel. Program sunrise/sunset cycles, simulate cloud cover and thunderstorms, and download preconfigured profiles like the popular SPS AB+ directly from the community. Mobius also centralizes control of VorTech and Vectra pumps for a complete EcoTech Marine ecosystem.

Box Contents

• 1 x EcoTech Radion XR30 PRO G6
• 1 x External power supply with adapter cable
• 1 x Microfiber cloth
• 1 x Mounting eyelets
• 1 x Quick Start Guide

Note: RMS mounting system sold separately.

Mounting Options — Sold Separately

• RMS Single Arm XR30: Single arm support for one Radion XR30 on rimless or rimmed aquarium, 90° rotation
• RMS Multi-Light: Anodized aluminum rail (20.5 to 70.5 in) for multiple Radions with sliding mounts and integrated cable management
• RMS Hanging Kit: Ceiling suspension kit for minimal aesthetics
• Radion G5/G6 Diffuser: Magnetic accessory for improved color blending and more uniform caustics — compatible with G5 and G6

Upgrade from G5

The Radion G6 is built on the same heatsink and driver platform as the G5. An upgrade kit (G6 cluster + HEI2 lens) allows transforming an XR30 G5 into a G6. It is also possible to convert a Pro to Blue or vice versa with the same kit.

Why choose ReefSolution

Authorized EcoTech Marine retailer in Canada with technical support in French. Complete your installation with the EcoTech Marine Radion RMS Single Mount XR30 — Aquarium mounting bracket, the Radion G5 Diffuser XR30 — Magnetic diffuser for uniform color blending, the Radion RMS Adapter Kit XR30 G5/G6 — Sliding mount for Multi-Light Rail system, or the EcoTech Marine VorTech MP40wQD — Wireless flow pump controlled via Mobius. Shipping across Canada.

Frequently Asked Questions

Why choose the Radion XR30 PRO G6 rather than the Blue G6?

The Pro offers a balanced full spectrum with green LEDs, more warm white and red — ideal for natural color rendition, growth of all coral types, and accurate photography. The Blue maximizes blue and UV channels for intense actinic rendition and maximum fluorescence. If you want to see your corals in their true color during the day and enjoy the blue at night, the Pro is the versatile choice.

How many Radion XR30 PRO G6 units are needed for a 4-foot reef aquarium?

Thanks to the 126.3° HEI2 optics, a single XR30 PRO G6 covers up to 4 feet in width with uniform PAR sufficient for a mixed reef. For an aquarium dominated by light-demanding SPS, two units offer superior PAR coverage and eliminate shadow areas.

Is the Radion XR30 PRO G6 compatible with RMS mounts and the G5 diffuser?

Yes. The G6 uses the same housing and heatsink as the G5. All RMS mounts (Single Arm, Multi-Light Rail, Hanging Kit) and G5 magnetic diffusers are fully compatible. A G6-specific RMS Slide adapter kit is required for the Multi-Light Rail system.
