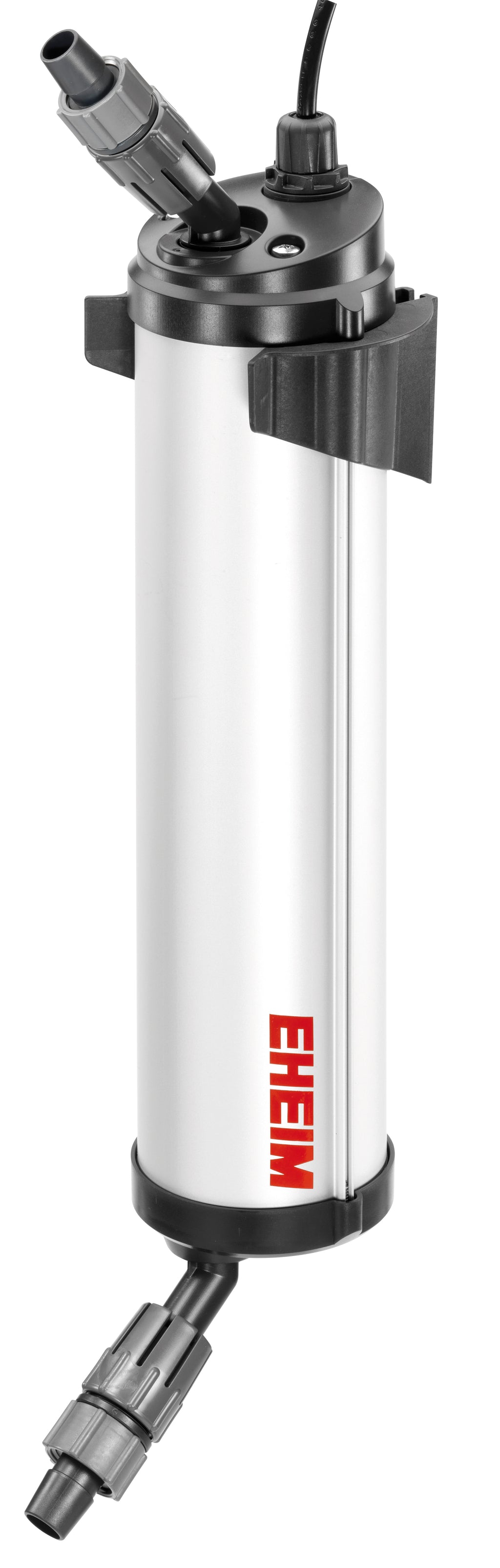

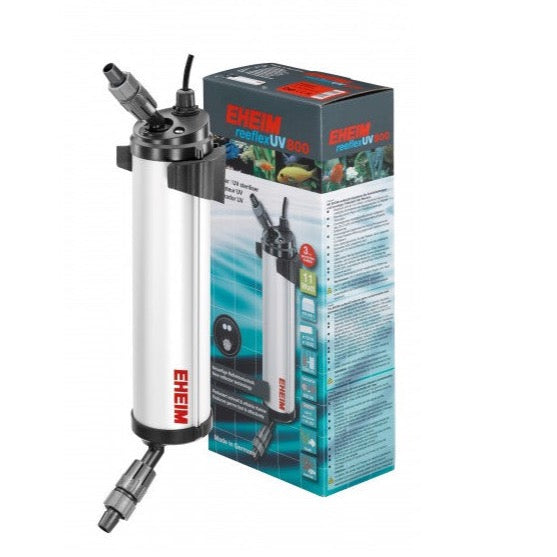

EHEIM reeflexUV 800 — UV Sterilizer 11W Reflector Aquarium 400-800L - Eheim

EHEIM reeflexUV 800 UV Sterilizer — 1.8x Reflector Technology for 400 to 800 Liter Aquariums

The EHEIM reeflexUV 800 UV sterilizer uses patented polished aluminum reflector technology that makes the unit 1.8 times more efficient than conventional UV sterilizers. Unlike traditional sterilizers where water is irradiated from only one side, the reeflexUV's integrated reflector redirects UV-C rays to penetrate the water from multiple sides simultaneously, significantly increasing germ elimination rates. Made in Germany.

The reeflexUV 800 is designed for freshwater and saltwater aquariums from 400 to 800 liters (106 to 211 gallons). Its 11-watt UV-C lamp offers a maximum flow rate of 600 l/h in sterilization mode (bacteria and parasites) and 1,200 l/h in clarification mode (algae and turbidity). It is the mid-range model in the reeflexUV series, ideal for medium-sized reef aquariums. Water flows directly around the UV-C tube without detours or diversions, eliminating any performance loss related to water path.

Technical Specifications

• Power: 11 watts
• For aquariums: 400 to 800 liters (106 to 211 gallons)
• Max sterilization flow (bacteria/parasites): 600 l/h
• Max clarification flow (algae/turbidity): 1,200 l/h
• Dimensions: 470 mm (H) x 115 mm (W) x 130 mm (D)
• Max pressure: 0.8 bar
• Fittings included: 2x ø 12/16 mm + 2x ø 16/22 mm
• Freshwater: Yes
• Saltwater: Yes
• Safety: AUTO-OFF — automatic shut-off when the device is opened
• Manufacturer's warranty: 3 years
• Manufacture: Made in Germany

EHEIM Reflector Technology

The highly polished internal aluminum reflector is the distinctive technology of the reeflexUV. In a conventional UV sterilizer, UV-C rays only irradiate water from one side. The EHEIM reflector redirects the radiation so that it penetrates the water from multiple sides, multiplying germicidal efficiency by 1.8 with the same energy consumption. This technology is exclusive to EHEIM.

AUTO-OFF Safety

UV-C rays are harmful to skin and eyes. The integrated AUTO-OFF system automatically cuts power as soon as the device is opened, ensuring safe handling during maintenance and lamp changes.

Installation

Install the reeflexUV 800 on the pressure side (return) of your external filter or circulation pump. The device comes with fittings for 12/16 mm and 16/22 mm hoses, compatible with most EHEIM external filters and other brands. Installation is flexible: no specific position or flow direction required. The included mounting bracket allows for easy installation.

Included in the box

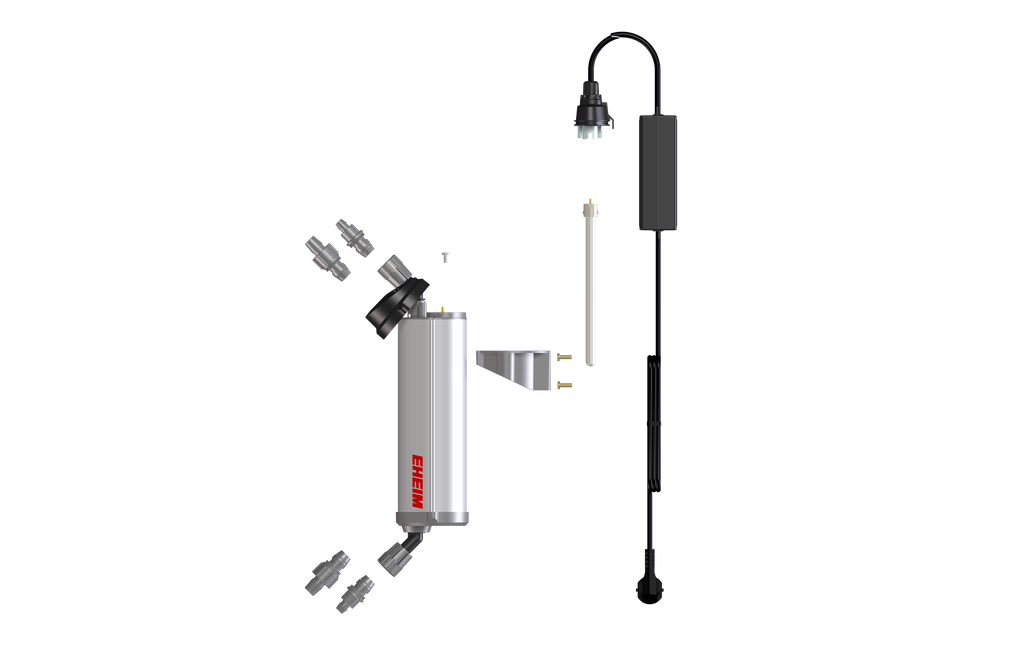

11W UV-C lamp, mounting bracket, ballast with power cord, 2x ø 12/16 mm hose fittings, 2x ø 16/22 mm hose fittings.

Which reeflexUV model to choose?

• reeflexUV 350 — 7W, aquariums 80-350L, sterilization 200 l/h, clarification 400 l/h
• reeflexUV 500 — 9W, aquariums 300-500L, sterilization 400 l/h, clarification 800 l/h
• reeflexUV 800 — 11W, aquariums 400-800L, sterilization 600 l/h, clarification 1,200 l/h
• reeflexUV 1500 — 18W, aquariums 700-1,500L, sterilization 1,000 l/h, clarification 2,000 l/h
• reeflexUV 2000 — 24W, aquariums 1,200-2,000L, sterilization 1,500 l/h, clarification 3,000 l/h

Why choose from ReefSolution

ReefSolution offers the EHEIM reeflexUV 800 with fast delivery across Canada. Complete your setup with:

• EHEIM reeflexUV 800 Replacement UV-C Lamp 11W — Replacement UV-C lamp
• EHEIM Hose ø 16/22 mm — Compatible flexible hose for connection
• EHEIM classic 600 — Compatible external filter, ideal in combination with the reeflexUV 800

Frequently Asked Questions

Is the EHEIM reeflexUV 800 suitable for a 150-gallon reef aquarium?

Yes, the reeflexUV 800 covers aquariums from 400 to 800 liters (106-211 gallons), which includes 150-gallon reef systems. In both fresh and saltwater, it's the ideal mid-range model for medium-sized reef aquariums.

What is the difference between the reeflexUV 500 and the reeflexUV 800?

The reeflexUV 500 (9W) covers aquariums from 300 to 500 liters with a sterilization flow of 400 l/h. The reeflexUV 800 (11W) covers aquariums from 400 to 800 liters with a sterilization flow of 600 l/h and a clarification flow of 1,200 l/h. For an aquarium larger than 500 liters, the 800 model is the appropriate choice.

How to install the reeflexUV 800 with an EHEIM external filter?

Install the reeflexUV on the pressure side (outlet) of the external filter, between the filter and the aquarium. Connect the 12/16 mm or 16/22 mm hoses (both fitting sizes are included). The device can be installed in any position and flow direction.
