AI Prime Tank Mount Black – Brushed Aluminum Rimless/Rimmed Mount - AquaIllumination

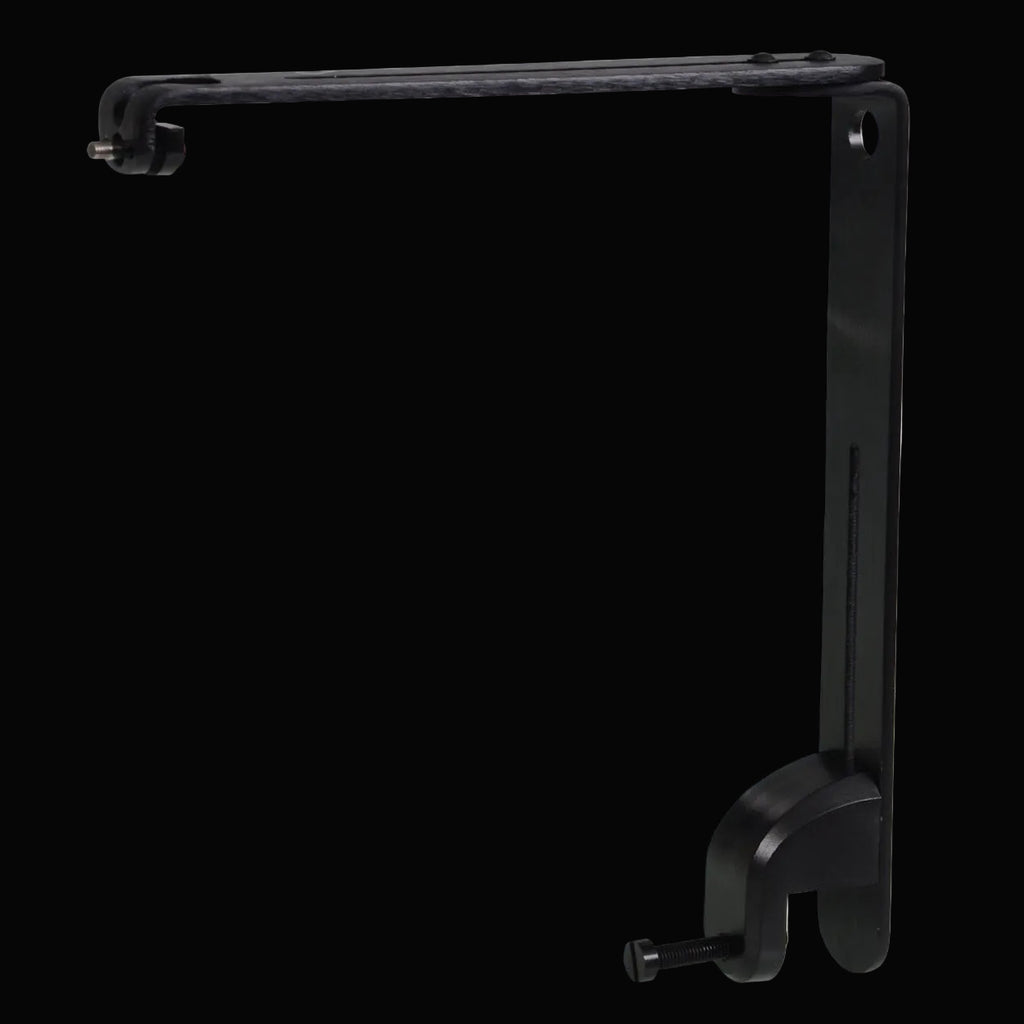

The AI Prime Tank Mount is AquaIllumination's rim mount for Prime fixtures. Black brushed aluminum, integrated ball joint, and two adjustable arms that let you place the light exactly where it needs to be. AquaIllumination describes it as an elegant mounting solution on both rimmed and rimless tanks.

The light is not included. This mount sells separately because no Prime ships with mounting hardware.

The Ball Joint Is the Point

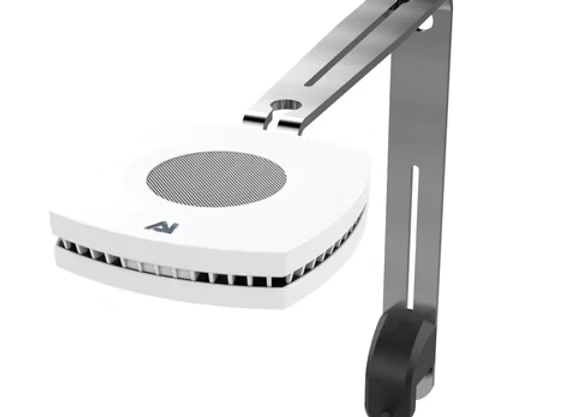

This is what separates it from a plain bracket. The ball joint lets you tilt and turn the Prime after installation, without unscrewing anything. You adjust with the light on, watching where the beam actually lands.

In practice it does three things: aims light at your corals instead of the wall, cuts spill outside the tank, and moves glare out of your line of sight when you're sitting in front of it.

Assembly

AquaIllumination has an official video walking through the full assembly. Worth watching before you start:

Specifications

• Max rim thickness: 1.25in. (32mm)
• Vertical arm: 11.25in. (28.6cm), adjustable
• Horizontal arm: 9.5in. (24.1cm), adjustable
• Material: brushed aluminum
• Color: black
• Compatibility: AI Prime 16HD Reef, Prime 16HD Freshwater, Prime Fuge

Measure your rim before ordering. AquaIllumination doesn't publish a max thickness on its product pages — the figure above circulates among US retailers. If your rim is thick or oddly shaped, send us the measurement before you buy.

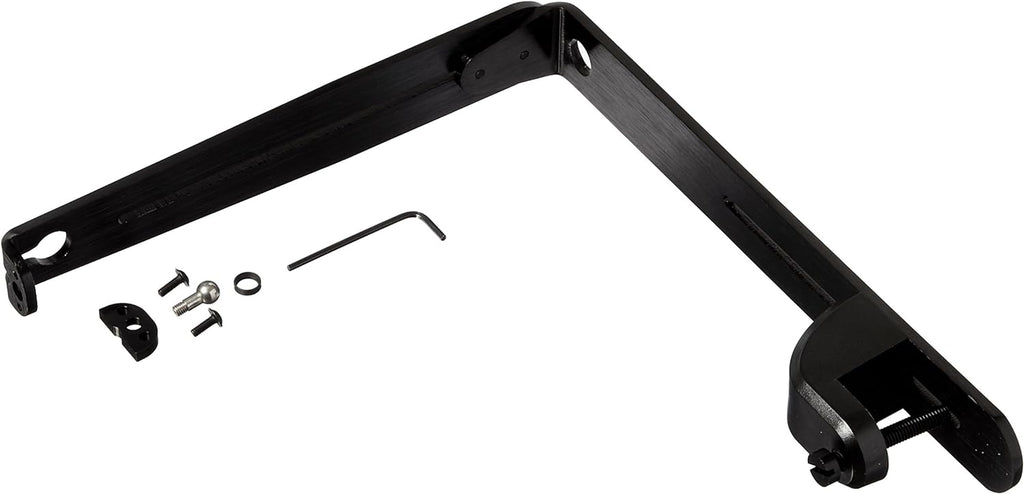

What's in the Box

• 1 x Two-piece mounting arm
• 1 x Aquarium clamp and hardware
• 1 x Light mount and ball joint assembly
• 1 x Allen key

Light not included.

Tank Mount, Flex Arm, or Hanging Kit?

All three do the same basic job, but not the same way:

• Tank Mount: the sturdiest and most precise. Two adjustable arms and a ball joint. This is the pick if you want the light to stay exactly where you put it and never drift.
• Flex Arm: the most adjustable. A gooseneck you bend by hand. Handy in a crowded space or over a sump.
• Hanging Kit: the most discreet. Nothing on the tank rim, everything at the ceiling.

Why Choose ReefSolution

Authorized AquaIllumination dealer in Canada with technical support in French. Picking the mount is the most common mistake on the Prime line — send us your tank dimensions and rim thickness and we'll tell you which part to order. Shipping across Canada.

Complementary products:

• AI Prime 16HD Reef Black — the nano reef fixture this mount is built to hold: 59W, 24 x 24in. coverage
• AI Prime Flex Arm 18in. — the gooseneck alternative, if you'd rather bend an arm than adjust two sections
• AI Prime Hanging Kit Black — ceiling suspension, if you want nothing on the rim
• AI Prime Fuge 16HD — the refugium fixture: same housing, so same mount

Frequently Asked Questions

Does the AI Prime Tank Mount work with the Prime Fuge?

Yes. The Prime Fuge, Prime 16HD Reef, and Prime 16HD Freshwater all share the same 4.88 x 4.88in. housing. All Prime mounting hardware fits all three. It won't fit Hydra or Blade fixtures though — those lines have their own systems.

What rim thickness does the Tank Mount handle?

Up to 1.25in. (32mm) according to the spec sheets circulating among retailers. AquaIllumination doesn't publish this figure on its official pages, so measure your rim before ordering. If you're unsure, send us the measurement and we'll check it with you.

Is the light included with the Tank Mount?

No. This is the mount only: the two-piece arm, the clamp, the ball joint assembly, and the Allen key. The Prime sells separately — no Prime fixture ships with mounting hardware.

Can you adjust the position after installation?

Yes, that's the whole point of the system. Both the vertical and horizontal arms are adjustable, and the ball joint lets you tilt and turn the fixture. You can correct the angle with the light on, watching where the beam actually falls in the tank.
